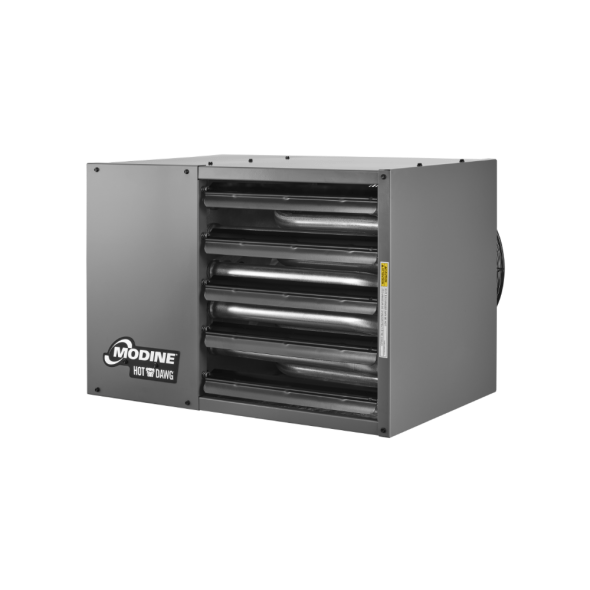

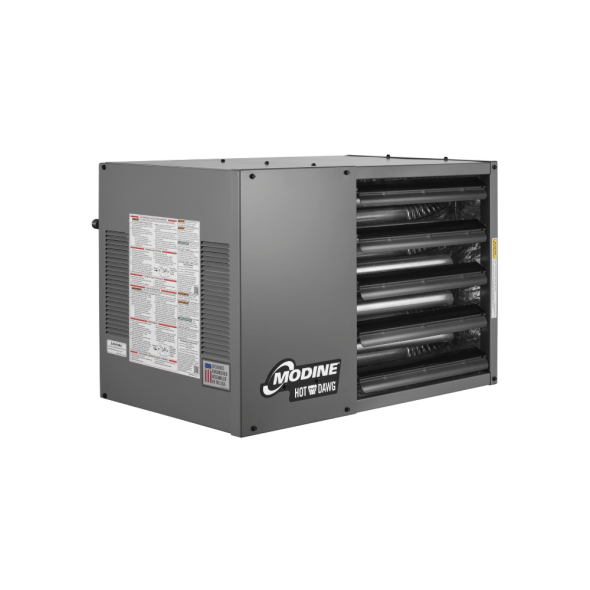

Modine Hot Dawg Separated Combustion Natural Gas Stainless Steel Garage Unit Heater 30000 BTU 115V 1 Phase HDS30SS0111

The Hot Dawg separated combustion garage heater pulls 100% of the combustion air from outside, making this unit ideal for workspaces such as wood shops or a garage where paint or flammable materials are used regularly. The fresh air supply reduces the common concerns about performance and durability that can come when working in a dusty or particulate laden environment.

Certified for residential, commercial, and industrial use.

MOUNTING HEIGHT (MAX)
10 ft.

HEAT THROW
25 ft.

FEATURES
Made in the USA
Draws fresh air from outside, ensuring dust, dirt or fumes do not affect durability or performance
Factory assembled, certified separated combustion. No add-ons needed allow for an easier and quicker installation providing greater durability and reduced maintenance.
Quiet operation allows your space to be warm without the distraction of a loud machine running in the background
Unit can easily be rotated to allow for convenient right or left side control placement NOTE: For model sizes 30-75
Fuel type: Natural or propane gas
Low-profile, lightweight design easily installs 1" from ceiling with only two angle brackets NOTE: Included on sizes 30-75, accessory for sizes 100, 125
Casing construction made of heavy gauge metal
Full 10-year warranty on heat exchanger
Permanently lubricated motor for maintenance-free dependability
Single- or two-stage controls available
Direct spark ignition for reliable and consistent ignition
100% shut-off with continuous retry to allow for safe ignition in the event the unit doesn't light on the first try
Factory installed finger proof fan guards
