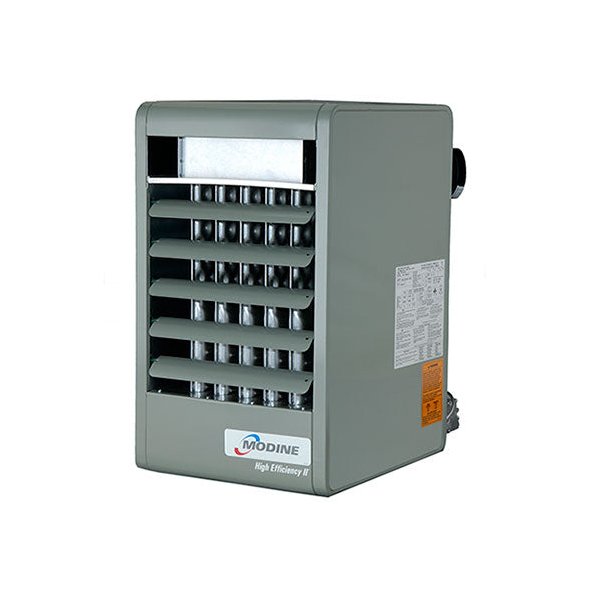

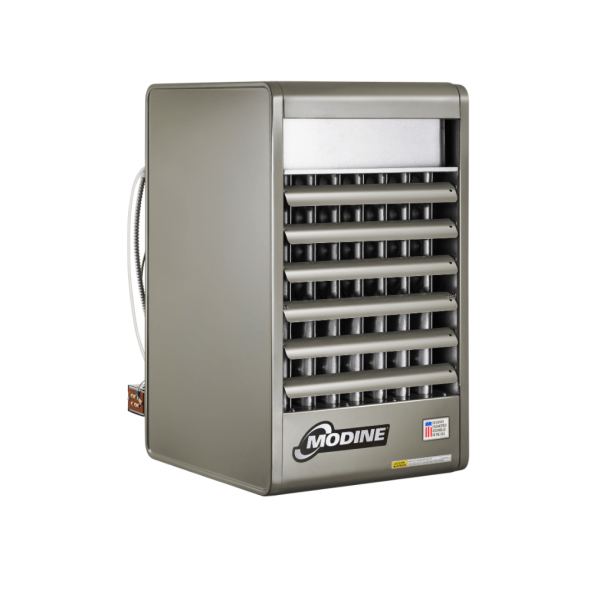

Modine PDP Power Vented Natural Gas Aluminized Steel Unit Heater 200000 BTU 115V 1 Phase PDP200AE0130

The perfect way to efficiently heat an ample space such as a large pole barn or a commercial or industrial warehouse. Easy to use and time tested for quality and durability. The PDP model series expands on the size range of the Hot Dawg Series. Our commercial-grade power vent unit heaters come with either a propeller fan or centrifugal blower fan in seven different sizes.

MOUNTING HEIGHT (MAX)
17 ft.

HEAT THROW
59 ft.

FEATURES
Made in the USA
83% thermal efficiency, maximizing seasonal efficiency through the use of a collector box and the power exhauster
A power exhaust can rotate 180 degrees allowing the unit to be vented vertically or horizontally
100% shut-off if the unit does not light, to ensure that unburned gases do not build up in the unit
An intermittent pilot-ignition system with continuous retry to keep the unit from locking and needing to rest if the unit does not light on the first try
All PDP/BDP units can be field-converted from natural gas to propane if desired
A safety pressure-switch monitors the event pipe to assure flue gases leave the building and do not back up in the space
Designed to utilize the smallest-diameter vent pipe possible
A level hanging mechanism for easy field adjustments after adding accessories that may change the unit's center of gravity
