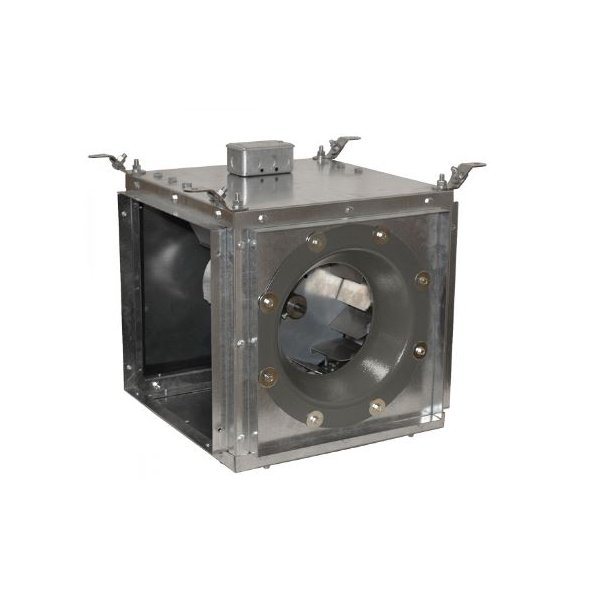

Square Inline Blower 16 inch 3750 CFM High Efficiency EC Variable Speed Motor Direct Drive GSQ165-D-EC

Model GSQ-D-EC is a direct drive square centrifugal inline fan designed for intake, exhaust, return, or make-up air applications where space is a major issue. Units feature a galvanized steel housing, EC Motor, and backward-inclined wheel. Available in 10 to 18" sizes for up to 4,000 CFM.

FEATURES
Same size inlet and outlet facilitates placement in straight duct runs
Backward Inclined wheel is non-overloading
Direct drive - no belts to service
Available in 9", 10", 12", 13", 15", 16", & 18".
High efficiency aluminum wheel.
Leak proof access panels with gasket.
Side discharge option as standard - simply re-locate the side panel to the discharge.
Bottom discharge available with flange kit.
Junction box.
High Efficiency EC variable speed motor.
Multiple mounting options.

COMMON APPLICATIONS
Restaurant Etc. Make-Up Air
Air mover in HVAC system
Air transfer
Indoor mounted exhaust fan
