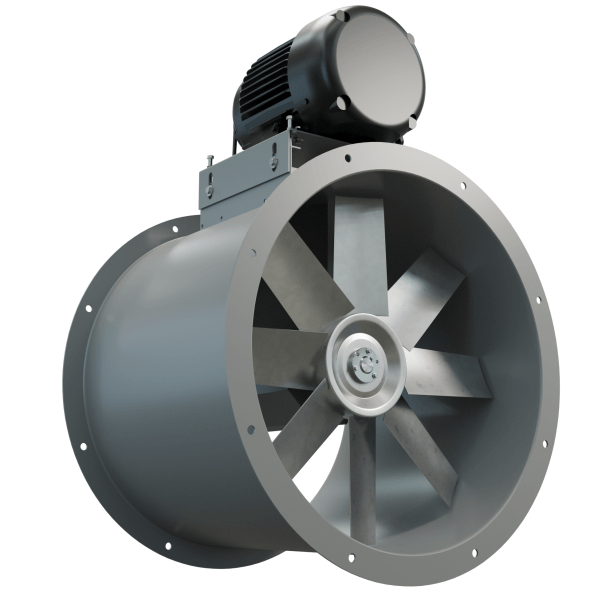

BTA Tube Axial Fan 24 inch 6750 CFM Belt Drive 3 Phase BTA24T30075M
The product Build Time you see represented on this site is only a typical number of days the manufacturer states it needs to build the product(s) when ordered. Build times are based on business days (excludes weekends & holidays).
The build time does not include the time it will take to ship the order to you (the customer). If an order has multiple items and comes from multiple warehouses, you may receive part of your order on one day, and then receive the remaining part(s) of your order at a later date.
*Please be aware that seasonal demand of certain equipment may cause build times to run longer than what is typical.
|Quantity||Unit Price||You Save|
NOTE: FANS ARE SPECIAL NON-STOCK ITEMS AND CANNOT BE RETURNED OR CANCELLED. Maximum temperature 200°
*Motor, belts and drivers out of air stream. Motor not classified as explosion proof. Call for Explosion Proof motor pricing.
Designed for duct connected applications such as paint spray booth exhaust, air makeup fans, general exhaust, etc.
Adjustable motor base.
Heavy duty pillow block ball bearings.
Extended lube lines with external grease fittings.
TEFC motors are standard.
Cast aluminum blades up to 48"; fans 54" & 60" have polypropylene reinforced fiberglass blades.

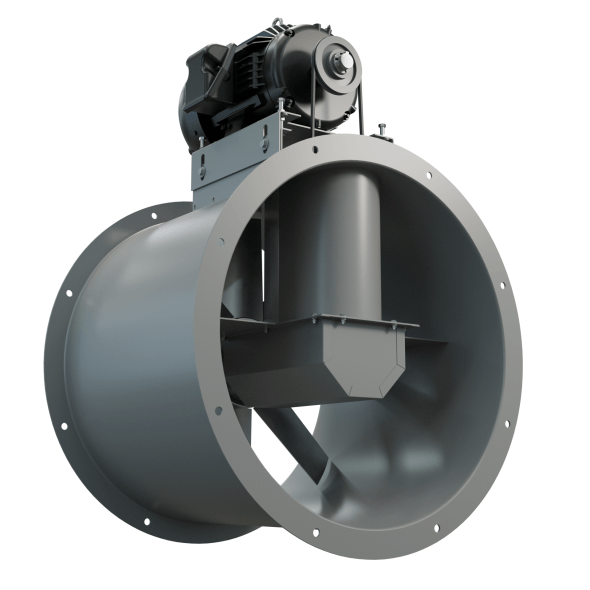

Airfoil shaped belt tube for improved efficiency;
Motor, belts, drives and bearings are isolated from air stream.
For clean, dry air with a maximum temperature of 200°F (95°C).

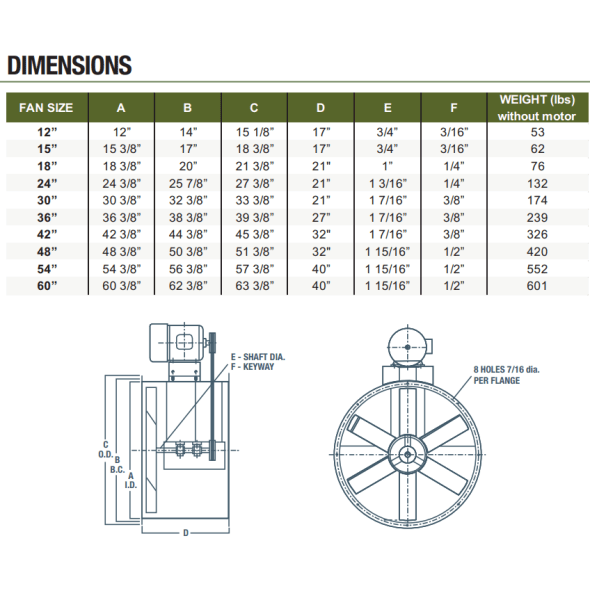

A = 24 3/8"
B = 25 7/8"
C = 27 3/8"
D = 21"
E = 1 3/16"
F = 1/4"
- Model No.:
- 208 / 230 / 460
- New York
- Duct Inline Fans
- Blade Material:
- Cast Aluminum
- Blade Size (Inches):
- No. of Blades:
- CFM High:
- Decibels (dBA):
- 58 @ 10 ft
- Dimension Inches:
- Width: 27.375" Depth: 21" Height: "
- Drive Type:
- Limited Warranty:
- 1 Year Limited
- Motor Type:
- RPM High:
- Weight lbs.:
